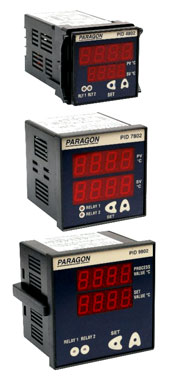

PID-Temperature Controller - (4+4 Digit, 2 Output)

SEND ENQUIRY
Model / Function PID 9802 PID 7802 PID 4802
Size
(96 x 96 x 74) mm
Refer Size (1) table
(72 x 72 x 74) mm
Refer Size (2) table
(48 x 48 x 92) mm
Refer Size (3) table
LED Display
4 + 4 Digit, 0.5” Height
4+4 Digit, 0.39” Height
4 Digit Process Value + 4 Digit Set Value
Setpoint
Single/Two set point temperature controller.
Input Sensor & Range 1) RTD, Pt 100 : -99.9 to 199.9 , 0 to 600°C   2) J ( Fe - K ) Thermocouple :- 100 to 750°C 3) K ( Cr - Al ) Thermocouple : 0 to 1350°C - Selectable
Control Mode Set 1 : P, PI, PD, PID, Auto Tune, On - Off, Time Proportional - Selectable. Set 2 : On - Off / Time Proportional - Selectable.
Control Action
1) Heating Action, 2) Cooling Action - Selectable for set 1 & 2 .
(In set 2, delay time for compressor start in cooling action)
Output 1 & 2 1) Relay, 2) SSR - Selectable for set 1 & 2.
(Relay :1CO,5A @ 230VAC / 24 VDC & SSR : 12VDC,20ma O/P)
Accuracy +/- 0.25 % of full scale or 1°C, whichever is greater.
Power Supply 90 to 250 VAC/DC @ 50/60 Hz.( 24 VAC/DC provided on request)
General Features Temp. Setting by key pad , Led indication for Relay status ,
Mounting : Panel mounting type.

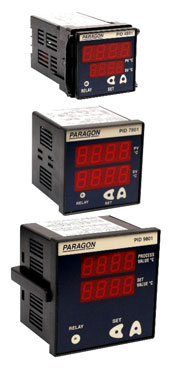

PID - Temperature Controller (4+4 Digit, 1 Output)

SEND ENQUIRY
Model / Function PID 9401 PID 7401 PID 4401
Size
(96 x 96 x 74) mm
Refer Size (1) table
(72 x 72 x 74) mm
Refer Size (2) table
(48 x 48 x 92) mm
Refer Size (3) table
LED Display
 4 Digit, 0.5” Height
4 Digit, 0.5” Height
4 Digit, 0.39” Height
Setpoint
Single set point temperature controller.
Input Sensor & Range
 1) RTD, Pt 100 : -99.9 to 199.9 , 0 to 600°C  2) J ( Fe - K ) Thermocouple : - 100 to 750°C 3) K ( Cr - Al ) Thermocouple : 0 to 1350°C - Selectable
Control Mode
P, PI, PD, PID, Auto Tune, On - Off, Time Proportional - Selectable.
Control Action
1) Heating Action, 2) Cooling Action - Selectable.
Output
 1) Relay, 2) SSR - Selectable.
(Relay :1CO,5A @ 230VAC / 24 VDC & SSR : 12VDC,20ma O/P)
Accuracy
+/- 0.25 % of full scale or 1°C, whichever is greater.
Power Supply
90 to 250 VAC/DC @ 50/60 Hz.( 24 VAC/DC provided on request)
General Features
Temp. Setting by key pad , Led indication for Relay status ,
Mounting : Panel mounting type.

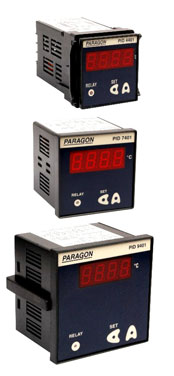

PID - Temperature Controller (4 Digit, 1 Output)

SEND ENQUIRY
Model / Function PID 9401 PID 7401 PID 4401
Size
(96 x 96 x 74) mm
Refer Size (1) table
(72 x 72 x 74) mm
Refer Size (2) table
(48 x 48 x 92) mm
Refer Size (3) table
LED Display
 4 Digit, 0.5” Height
4 Digit, 0.5” Height
4 Digit, 0.39” Height
Setpoint
Single set point temperature controller.
Input Sensor & Range
 1) RTD, Pt 100 : -99.9 to 199.9 , 0 to 600°C  2) J ( Fe - K ) Thermocouple : - 100 to 750°C 3) K ( Cr - Al ) Thermocouple : 0 to 1350°C - Selectable
Control Mode
P, PI, PD, PID, Auto Tune, On - Off, Time Proportional - Selectable.
Control Action
1) Heating Action, 2) Cooling Action - Selectable.
Output
 1) Relay, 2) SSR - Selectable.
(Relay :1CO,5A @ 230VAC / 24 VDC & SSR : 12VDC,20ma O/P)
Accuracy
+/- 0.25 % of full scale or 1°C, whichever is greater.
Power Supply
90 to 250 VAC/DC @ 50/60 Hz.( 24 VAC/DC provided on request)
General Features
Temp. Setting by key pad , Led indication for Relay status ,
Mounting : Panel mounting type.

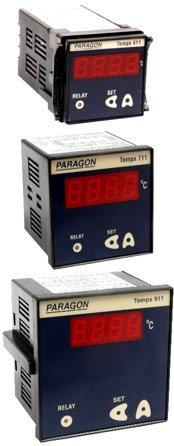

TEMPERATURE CONTROLLER - PROGRAMMABLE (4 Digit, 1 Output)

SEND ENQUIRY
Model / Function Tempx 911 Tempx 711 Tempx 411
Size
(96 x 96 x 74) mm
Refer Size (1) table
(72 x 72 x 74) mm
Refer Size (2) table
(48 x 48 x 92) mm
Refer Size (3) table
LED Display
 4 Digit, 0.5” Height
4 Digit, 0.5” Height 4 Digit, 0.39” Height
Setpoint Single set point temperature controller.
Input Sensor & Range
1) RTD, Pt 100 : -99.9 to 199.9 , 0 to 600°C
2) J ( Fe - K ) Thermocouple : -100 to 750°C
3) K ( Cr - Al ) Thermocouple : 0 to 1350°C - Selectable.
Control Mode 1) On - Off,
2) Time Proportional - Selectable, with programmable on - off band / proportional band / cycle time / reset (offset) value.
Control Action 1) Heating Action,
2) Cooling Action - Selectable , with delay time for compressor - start.
Accuracy
+/- 0.25 % of full scale or 1°C, whichever is greater.
Power Supply 90 to 250 VAC/DC @ 50/60 Hz.( 24 VAC/DC provided on request)
Output 1CO Relay (NO-C-NC) , with 5A @ 230VAC / 24 VDC ratings.
For SSR 12VDC,20ma output provided on request.
General Features Temp. Setting by key pad , Led indication for Relay status ,
Mounting : Panel mounting type.

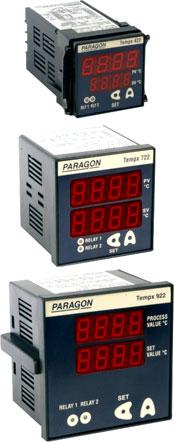

TEMPERATURE CONTROLLER - PROGRAMMABLE (4+4 Digit, 1/2 Output)

SEND ENQUIRY
Model / Function Tempx 922 Tempx 722 Tempx 422
Size
(96 x 96 x 74) mm
Refer Size (1) table
(72 x 72 x 74) mm
Refer Size (2) table
(48 x 48 x 92) mm
Refer Size (3) table
LED Display
4+4 Digit, 0.5” Height
 4+4 Digit, 0.39” Height
4 Digit Process Value + 4 Digit Set Value
Setpoint Single / Two set point temperature controller.
Input Sensor & Range
1) RTD, Pt 100 : -99.9 to 199.9 , 0 to 600°C
2) J ( Fe - K ) Thermocouple : -100 to 750°C
3) K ( Cr - Al ) Thermocouple : 0 to 1350°C - Selectable
Control Mode 1) On - Off,
2) Time Proportional - Selectable, with programmable
on - off band / proportional band / cycle time / reset (offset) value.
Control Action 1) Heating Action,
2) Cooling Action - Selectable , with delay time for compressor - start .
Accuracy
+/- 0.25 % of full scale or 1°C, whichever is greater.
Power Supply 90 to 250 VAC/DC @ 50/60 Hz.( 24 VAC/DC provided on request)
Output 1 & 2 1CO Relay (NO-C-NC) , with 5A @ 230VAC / 24 VDC ratings.
For SSR 12VDC,20ma output provided on request.
General Features Temp. Setting by key pad , Led indication for Relay status ,
Mounting : Panel mounting type.

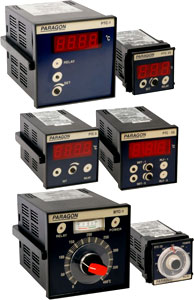

Temperature Controller Potentiometer Type

SEND ENQUIRY
Model / Size Function Sensor - Range Supply Voltage
PTC - 1
(96x96x121) mm
Digital 1-Set Point Control

• J (Fe-K) : 1) 0 to 200°C 2) 0 to 400°C 3)     0 to 600°C
• K (Cr-Al) : 1) 0 to 400°C 2) 0 to 800°C 3)     0 to 1200°C
• RTD (PT100) : 1) -50.0 to 50.0°C 2) 0 to     199.9°C 3) 0 to 200°C 4) 0 to 400°C 5)     0 to 600°C
• R,S : ) 1600°C
• Linear Input : 1) 4 to 20 mA 2) 0 to 10 VDC • Linear Output : 1) -1999 to 1999 EU- 2) -199.9 to 199.9 EU
1) 230 VAC
2) 110 VAC
3) 24 VAC / DC
PTC - 3
(72x72x113) mm
Digital 1-Set Point Control
PTC - 25
(48x48x100) mm
Digital 1-Set Point Control
PTC - 55
(72x72x113) mm
Digital 2-Set Point Control
BTC -1
(96x96x121) mm
Blind 1 - Set Point Control with deviation meter

• J (Fe-K) : 1) 0 to 200°C 2) 0 to 400°C
• K (Cr-Al) : 1) 0 to 400°C
BTC -28
(48x48x100) mm
Blind 1 - Set Point Control

Control Action : On-Off Type
Time Proportional (TP) (Optional)
Control Logic : Heat Control
Cooling Control (CC) (Optional)
Relay Output : 1) One change over (1CO)
Two change over (2CO) (Optional) (In 1-Set Point Control)
2) Two seperate, one change over 1CO relay in PTC-55.
Relay Contact 5A, 230 VAC / 24VDC resistive load
Accuracy : 1) 1% For J,K,R,S, Sensor and 0.5% for PT 100 in PTC-1, PTC-3, PTC-25, PTC-55, model. 2) 2% for J & K Sensor in BTC-1 & BTC-28 model.
BTC-28 available in 1) ST - Screw Terminal Type. 2) 8P - 8 Pin Plug in type.
Order Code : MODEL - SENSOR - RANGE - OPTIONAL - SUPPLY
For Size (48X48X100) mm Refer Size (10) table.
For Size (72X72X113) mm Refer Size (11) table.
For Size (96X96X121) mm Refer Size (12) table.

DIGITAL PRESET TIMER - PROGRAMMABLE

SEND ENQUIRY
Function / Model TIMEX 932 TIMEX 732 TIMEX 432
Size
(96 x 96 x 74) mm
Refer Size (1) table
(72 x 72 x 74) mm
Refer Size (2) table
(48 x 48 x 92) mm
Refer Size (3) table
LED Display
3 Digit, 0.5" Height
3 Digit, 0.5" Height
3 Digit, 0.39" Height
Delay Mode
On delay, off dealy (Interval) - Selectable. (Refer Fig. -1)
Time Range
9.99, 99.9, 999 Sec / 99.9, 999 Min / 99.9 Hrs. - Selectable.
Start Input
Gate / Pulse start - Selectable
Reset Input
Front panel Key / Rear Terminal for remote reset / Ar Power on.
(Front panel reset key - enable / disable facility.)
Relay Output
Two change over, with 5A @ 230VAC / 24 VDC contact ratings.
Accuracy
0.05% or 50 msec, whichever is greater.
Power Supply
90 to 250 VAC/DC @ 50/60 Hz. ( 24 VAC/DC provided on request )
General Feature
Set Point : Single ser point, Count Direction : Down,
Time Setting by key pad, Reset recovery time : < 100 msec
Led indication for Relay Status, Mounting : Panel mounting type
Memory Retention
--------------
10 year, available in
Model :Timex 732 MR
10 year, available in
Model :Timex 432 MR

DIGITAL PRESET TIMER - PUSH WHEEL TYPE

SEND ENQUIRY
MODEL (Function) Timer-920-2D-P1
Timer-920-3D-P2 		Timer-01-2D-P1 Timer-01-3D-P2 Timer-25-2D-P1 Timer-25-3D-P2
Size
(96 x 96 x 74) mm
Refer Size (1) table
(72 x 72 x 74) mm
Refer Size (2) table
(48 x 48 x 92) mm
Refer Size (3) table
LED Display
2 / 3 Digit,0.5” Height
2 / 3 Digit,0.5” Height
2 / 3 Digit,0.39” Height
Time Setting
By Push wheel type switches, 2 / 3 no.
Time Range
( Selectable )

A) for 2D : 2 Digit ; 0.99, 9.9, 99 Sec / 9.9, 99 Min / 9.9 Hrs. &
B) for 3D : 3 Digit ; 9.99, 99.9, 999 Sec / 99.9, 999 Min / 99.9 Hrs.

Relay Output
A) for P1 : One change over &, B) for P2 : Two change over , with
5A @ 230VAC / 24 VDC contact ratings.
Delay Mode
On delay, Off delay (interval) - Selectable.
Count Direction
Up / Down Counting direction - Selectable.
Start Input
Pulse start input from rear terminal.
Reset Input
Front panel key / Rear terminal for remote reset / At power on.
Accuracy
0.05 % or 50 msec, whichever is greater, Quartz crystal base.
Power Supply
90 to 250 VAC/DC @ 50/60 Hz.( 24 VAC/DC provided on request)
General Features
Set Point : Single set point , Reset recovery time : < 100 msec
Led indication for Relay status, Mounting : Panel mounting type
Memory Retention
------------------------
10 year, available in
Timer-01-3D-P2-MR
10 year, available in
Timer-25-3D-P2-MR

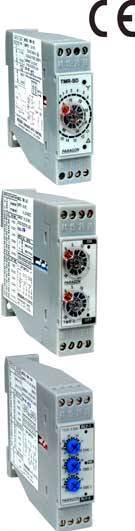

TMR DIN Rail Timer / Wall Mounting Timer (22.5mm)

SEND ENQUIRY
MODEL RELAY OUTPUT SUPPLY VOLTAGE TIME RANGE (Selectable) FUNCTION
TMR-23-P1

One change
Over (1CO)
1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
1.5/6/15/60 sec.


On Delay / Off Delay
(Interval)
(Selectable)
(Refer Fig. -1)
TMR-23-P2 Two change
Over (2CO)
TMR-23
Two change
Over (2CO)
1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
4) 12 VDC
 1.5/6/15/60
SEC/MIN/HRS.
TMR-24 Two change
Over (2CO)		 24 to 230 V
AC/DC
TMR-EC1 One change
Over (1CO)		 100-230 VAC
& 24VAC/DC		 15/60 SEC/MIN On Delay / Off Delay / Equal
Cyclic (On / Off time First)-
(Selectable) (Refer Fig. -1.9)
TMR-SD
(Star-Delta timer)		 Separate NO Contacts for Star & Delta 1) 230 / 415 VAC
2) 110 VAC		 Set Time : 15/60 SEC.
Pause Time : 40/100 mSEC.		 Star Delta Change Over (Refer Fig. -4)
TMR-23C (Cyclic Timer) Two change
Over (2CO)		 1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
4) 12 VDC		 3/30
SEC/MIN/HRS.		 Asymmetrical
Cyclic On Timer/Off Time First,Single / Multi
Cycle (Selectable)
(Refer Fig.-5)
TMR-24 C (Cyclic Timer) Two change
Over (2CO)		 24 to 230 V
AC / DC
TMR-FSR (Forward (T1) Stop (T3) Reverse (T2) Timer Separate one change over for Forward and Reverse 1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
4) 415 VDC		 Forward Time (T1) : 6/60 SEC/MIN.
Reverse Time (T2) : 6/60 SEC/MIN.
Stop Time (T3) :
30 SEC / 3 MIN		 Forward-Stop-Reverse
Time, Single Cycle/
Repeat Cycle
(Selectable)
(Refer Fig.-6)

RTS-29, DIGITAL DAILY / WEEKLY TIME SWITCH

SEND ENQUIRY
Daily / Weekly program
Total 28 (On-Off) Program cycles per day or week
Battery Operated Real time clock
Minimum Switching time - 1 Minute.
Clock Accuracy : 1.5 SEC / day maximum.
Working Reserve - 1 Year
0.39" LED Display.
Auto / Manual Switching
Supply Voltage : 90 to 250 VAC / DC. (24VAC / DC provided on request.)
Relay Contact : One change over, rated for 10 A, 230 VAC / 24 VDC resistive load.
Mounting : 1) ST - Screw Terminal [For Front Panel Mounting]
                  2) 8P - 8 Pin Plug [For 35 mm Rail or wall mounting
Size : [48H) X 48(W) X 87(D)] mm, (Refer Fig. 14)
Order Code : RTS 29 - Mounting. Ex. : RTS 29 - 8P

RPM INDICATOR

SEND ENQUIRY
1) MODEL : RPM - 0249, Size : (48 x 96 x 75) mm, Refer Size (4) table.
2) MODEL : RPM - 0277, Size : (72 x 72 x 74) mm, Refer Size (2) table.
3) MODEL : RPM - 0244, Size : (48 x 48 x 92) mm, Refer Size (3) table.
RANGE : 04.00 to 9999, Auto Range.
Accuracy : 0.05%
Panel mounting type.
LED Display 0.5" height in RPM - 0249 / 0277 and 0.39" Height in RPM - 0244.
Input Sernsor : PNP / NPN Proximity / Photo Sensor, encoders, solid state devices - Selectable.
Supply : 90 to 250 VAC / DC @ 50 / 60 Hz. (24 VAC/ DC provided on request)

DIGITAL PRESET COUNTER / LENGTH COUNTER

SEND ENQUIRY
Model (Size) RANGE MODE (Selectable) RELAY OUTPUT
Counter -01-4D-P1-MR
4 Digit : 9999 Counts
On Delay (Interval)
(Refer Fig. 2)
One change over (1CO)
Counter -01-4D-P2-MR
4 Digit : 9999 Counts

1) On Delay / Interval
2) Auto Reset (Time 000.1 to 999.9 Sec)
3) Scale Factor : a) in 4 Digit :0.001 to 999.9 b) in 6 Digit : 0.00001 to 999.999
(Refer Fig. 2, 3)
Two change over (2CO)
Counter -01-6D-P2-MR 6 Digit : 999999 Counts
Count retaintion in memory at power failure.
Input Speed : 200 or more counts per second.
Input Sensor : PNP/NPN Proximity / Photo Sensor, / Encoder / Potential Free contact - Selectable.
Over run/Non -over run - Selectable.
Reset : Front panel key & rear terminal for remote reset.
Auto Reset : In this, when actual counts reach to the preset counts, relay change the contact position for preset time 000.1 to 999.9 sec and display will automatically reset to zero, & start new cycle of counting.
Scale factor for length counting.
Realy Contact 5A @230 VAC / 24 VDC resistive load.
Supply Voltage :90-250 VAC / DC @ 50/60 Hz. (24 VAC/DC provided on request.)
Size : (72 x 72x 74) mm, Refer Size (2) table.

Quick links

Contact us

Follow Us

© 2015 All Right Reserved by Crescent Electricals Powered By BDM INFOTECH
