Moving Iron Instruments are generally used for measuring AC Voltages and Currents. A feature of the moving element is that it is fitted with synthetic sapphire jewels. The movement is light and quick-acting, but extremely robust. An efficient system of fluid damping is employed. The movement is efficiently shielded against the effect of external magnetic fields.

Moving Coil Instruments are used for measuring DC values. They can be used too on AC systems , if the input is fed through bridge rectifiers. A Centre magnet system is incorporated in our moving coil instruments which completely shields the movement from the effect of external magnetic fields. The movement is pivoted between synthetic sapphire jewel bearings for frictionless operation.

The above meters can be used for higher ranges by using necessary Current and Potential transformers, and external shunts, Accuracy Class: 1 to 1.5% as per ISS 1248/83, we also manufacture.

MOVING IRON AMMETERS
Range: 50mA to 100A Self contained and higher ranges via current transformers, with secondary 1A or 5A.Overload scales 2.3 or 4 & 6 times rated load can be provided.

MOVING IRON VOLTMETERS
Range: 50V to 600V Self contained and higher ranges, using PTs.

MOVING COIL AMMETERS
Range: 50 µA to 30A Self contained and external shunt operated for higher ranges.

MOVING COIL VOLTMETERS
Range: 50 µA to 30A Self contained and external shunt operated for higher ranges.

NIPPEN Bimetallic maximum demand ammeters with integration times of 15 or 30 minutes. with utilities increasingly being vigilant about such demand that influences billing of energy consumed, are increasingly sought in panels. There are two models to choose from. Model MD-96 has only a slave pointer attached to the bimetal movement. In Model MD-96S, the instantaneous values ,can also be monitored in addition to the maximum demand values, by the additional moving iron movement.

NIPPEN's Frequency Meters are of two types:

• Vibrating Reed Type Frequency Meters.
• Transducer Type, Pointer Frequency Meters.

VIBRATING REED TYPE FREQUENCY METERS
The vibrating reed frequency meter has steel reed elements placed in the field of an electromagnet. The reeds vibrate in resonance with the energizing Alternating Current of this electromagnet. Meters are manufactured having 11, 13 or 21 reeds. Only the individual reed, whose natural frequency corresponds with the frequency of the A.C. supply, will vibrate at full amplitude indicating the correct frequency on the dial. When two reeds show deflection of the same amplitude the mean of the two gives the correct frequency.

• Available in sizes: 72mm, 96mm & 144mm square panel mounting type.
• Range: 45-50-55 Hz, 47-50-53 Hz
• Voltage: 110V or 230V or 440V
• Accuracy: ± 1% as per ISS 1248/83

TRANSDUCER TYPE POINTER FREQUENCY METERS
The Specification is same as that of the Vibrating Reed Type Frequency Meters.

These meters measure sequences of 3 phase power lines. Suitable for operating on 50-500V AC and 40-65Hz, they are housed in 96mm square cases. The phase sequence is indicated by the direction of rotation of the disc.

NIPPEN's Insulation Testers are used for direct reading of insulation resistance of electrical rotating machines, power distribution lines, communication cables, insulators , control and switching equipment etc. They are robust instruments, incorporating a built-in-hand driven generator and a solid-state circuit for a stabilized D.C. output.

They are robust instruments, incorporating a built-in-hand driven generator and a solid-state circuit for a stabilised D.C. output.

NIPPEN Insulation Testers meet the requirements of Indian Standard Specifications IS.2992-1987 for Insulation resistance measuring instruments.

These instruments are supplied in two types of cases:

• An injection moulded ABS plastic case, where the unique geometry of the cabinet makes it practically unbreakable due to accidental falls and bumps.
• A sturdy and elegant Aluminium cast case with carrying handle which makes the instrument conveniently portable.

The tester has two sections and is dust free. The rotary magnet type generator runs smooth with minimum noise because of the excellent dynamic balance of rotating parts.

Note: Any other combination of ranges can also be made to specific requirements.

NIPPEN's ITHV is a Universal Portable, Multipurpose Test instrument for checking insulation and Conductance during simulated operating conditions in high tension Electrical & Electronic Fields.

ITHV ideally useful for the Electrical maintenance of rotating Plant Machinery, Distribution Networks, Communication cables, Insulators and servicing of Control and switching equipments, Transformers and Industrial Installations. ITHV is a versatile, robust and highly reliable insulation tester, which is recommended for every Electrical Engineer.

NIPPEN's Earth Resistance Testers are used for measuring earth electrode resistance, soil resistance, earth continuity, neutral and earth loop resistance, resistance of various components etc.

They are used in Railways, Defence, Utilities, Power Plants, Geological Surveys and other Industries.

Direct reading type models SET/DET/TET provide direct readings of resistance on moving coil type meters, having a linear scale, 70mm long knife edge pointer and an external zero adjustment.

NIPPEN Power line Transducers give load independent and isolated DC outputs proportional to input parameters like current, voltage, frequency, power factor, active power, reactive power and dc isolation.

Features

• A C VOLTAGE.
• FREQUENCY
• PF
• ACTIVE POWER
• REACTIVE POWER
• D C ISOLATION

Features

• Linear aux. power supply of 230V AC.
• Conforms to IEC 60688 and IS 12784.
• Short circuit protected and open circuit proof.
• High input/output isolation 3kV/ 4kV.
• DIN RAIL/ Back panel mounting arrangement.
• Wide choice of outputs and suppressed ranges.
• Current or voltage output.
• Single or dual ISOLATION.

EM-34 (Self Powered)

6 digits Mechanical, non resettable stepper Counter Display.

Individual phase reversal & current reversal indication.

Optically Isolated Open Collector pulse output.

Features

• Accuracy Class 1% as per IEC 61036 / IS 13779 (0.5 optional).
• CT ratio programmable on site.
• Accurate reading for balanced as well as unbalanced loads.
• Accurate reading even under rapid current fluctuations.
• Finger proof terminal cover (optional).
• No mechanical wear & tear.

EM-34L

Direct Type With Inbuilt CT Up to 50 Amp.

Direct Type With Inbuilt CT Up to 50 Amp.

Optically isolated Open Collector Pulse Output

Optional RS 485 Port With Modbus -RTU Protocol

Features

• Accuracy Class 1% as per IEC 61036 / IS 13779 (0.5 optional).
• Accurate reading for balanced as well as unbalanced load.
• Accurate reading even under rapid current fluctuation.
• True RMS measurement.
• Finger proof terminal cover (optional).

EARTH LEAKAGE RELAYS

The NIPPEN ELR(Earth Leakage Relay) model has a high performance microcontroller based 3 digit, 7 segments bright LED display. NIPPEN'S ELR detects leakage current well before it crosses threshold limits and isolates the supply instantly with help of a MCCB/ACB/OCB/Contactor.

Features

• Digital display in both DIN RAIL (ELR DIN35) and Panel Models (ELR 96)
• Monitors true RMS earth fault currents
• Bar Graph to indicate leakage current as a percentage
• Test and Reset function
• CBCT open circuit detection

NECT

NIPPEN current transformers comply with the highest international quality standards and are made according to BS 3938, CORE OF HIGH PERMEABILITY SILICON STEEL) Is2705 or IEC185. CT's are available in BPCT & WPCT rated Volt. 660V, Sec Current 5A or 1A In BPCT current range is 100A-3000A , in WPCT below 75A,Rated Burden 1VA-30VA

Features

• TYPE Tested at ERTL as per IS2705
• FR grade ABS housing sonic welded
• Temperature rating -10 C to 70 C class E
• Frequency 50/60HZ

Digital DT-36P features Active Power and P.F. combined in a single display page. It gives phasewise and total or system vialues with the use of or buttons located on the front panel. The microcontroller based circuitry gives highly precise, reliable and true RMS readings.

Features

• True RMS computation.
• Measures active power phase wise and total.
• Power factor per phase and system P.F.
• Auto scalling into Kilo, Mega and Giga and deciman shift.
• CT ratio programmable at site.
• Aux Supply : 230V OR 110V
• Auto scrolling function for parameter view
• Star and delta conversion
• Very low CT burden.
• 2 line display of 4 crisp and super bright digits of 14.2 mm. height
• Cutout: As per DIN 43700

Features

• True RMS measurements and perfect linear response
• 1 Row of 7 segment 10mm, 6digit high flicker free bright LED display
• On site, programmable CT/PT Ratio/Password/Meter ID
• Compact 54mm depth
• Display of RPM
• On site selection of Auto Scroll/Manual Scroll/Fixed Screen
• Wide range of Auxiliary supplies
• Easy access to set-up using scroll keys
• Finger proof self-lifting terminals for connection (optional)

APPLICATIONS:

• Electrical Panels- Industrial HT & LT Panels.
• Motor Control Centres.
• Distribution, Control & Relay Panels.
• Air Conditioning & Refrigeration Panels.
• Wind Energy Power Plants and Generating sets.
• Generation, Transmission & Distribution Panels.
• Test Benches, Laboratory Equipment & UPS Systems.

To be supplied with the right meter, simply furnish the following details in your order:

• Model Number, Description of the Meter.
• Accuracy Class.
• Voltage Input (110 Volts from PT, 240 Volts line to neutral or 415 Volts Line to Line).
• PT Ratio specifies the High Voltage Primary first ( 33 kV.110V).
• Current input (5Amps or 1 Amp secondary ) CT ratio (e.g. 100/5 Amps. etc.).
• Aux. Supply : 50/60 Hz (240VAC of 110/VAC).
• Dimension : 96 x 96mm or 48 x 96 mm or 144 x 144 mm.

Note

• Higher Ranges for KV, KA, KW, KVA, KVAr, MW & MVAr are available.
• DC Volts : 10 to 500 Volts nominal, full scale.
• DC Amps: 75 MV or 60 MV with External Shunt.
• True RMS Voltmeter / Ammeter available.
• Higher Frequency range available .

Features

Models

Specifications

• Demand Controller hepls to identify excess demand
• Hooter / Alarm to indicate as soon as demand excess
• Avoid in demand penalties
• Reduction in electricity board
• Different demand can be set for different timing
• Measures all import electrical Parameters
• Accuracy 1.0 % or 0.5 % (optional)
• THD of Voltage & current phas - wise & Total
• "RS 485" Port for communication to BMS / EMS / SCADA / PLC

NIPPEN Demand Controller are flush mounting, micro controller based Power Meters, easy to use & cost effective. The instrument offers verstile and unmatched features and functions to monitor, record events, control, log data, protect and also check the quality of electrical system.

More Details

In today's world of cutthroat competition and market dive economy, on one hand there are rising energy cost and on the other is an urgent need to be "Globally Competitive", not only to grow but even to survive.

Further there is need to comply with the new energy conservation law 2001, making energy audits mandatory.

Smart Analyser (Multi Parameter Meter Software)
Idealsoft Solutions brings to you yet another tool Smart Analyser, to enhance your energy conservation and utility Management efforts.

Smart Analyser - Total Energy Management Solution is available in three flavors as follows: A) Standard version ships with the basic required facilities such as Online Monitoring of Real Time data, Graphical Representation of Current Values, Tabular format of historical data, Alarms at a particular level crossed. It can export the data to the other spreadsheet utitilies. In the settings option you can set the parameters for the Alarms, Meter selection, ranges. The software is armed with easy help at each stage of usage.

B) Professional Version contains above & some advanced features such as zooming the Graphs for better Precision. It will e-mail the alarmed data periodically to a particular Email ID. It generates Tariff Bills report as per settings.

C) In Enterprise Version the key feature is tht Data can be viewed over the Internet for distant monitoring of meter. With this feature a valid user can view the trends/all the features over the internet.

The basic application of current transformers are:

• Lowering the very high primary current passing through bus bars, cables, or wires to 5A or 1A, a measurable quantity by measuring instruments.
• Isolating the measuring instrument and protective devices from mains.
• Reproducing proportionate primary current on its secondary side, as required for extending the range of the instruments.

Basically CTS are of different types:

BAR PRIMARY CURRENT TRANSFORMER (BPCT)
For Currents of 100A and above the bus bars or cables are quite thick and it is easier to measure the currents without breaking the bus bars or cable by means of a Bar Primary current transformer which can be slipped over the bus bar or cable. These CTs are most commonly used as they are sturdy, compact and more economical.

WOUND PRIMARY CURRENT TRANSFORMER (WPCT) For currents below 100A, it is uneconomical to achieve the desired accuracy by employing Bar primary type CTs and the solution is Wound Primary C.T., where both primary and secondary are Wound over the core.

CLAMP ON CT'S NIPPEN clamp-on CT's enable quick and accurate current measurements on live circuits without disconnecting loads. Precision phase shift characteristics ensure accurate power or energy measurements conveniently. These are one of the accessories in our energy audit system.

Features

• True RMS measurements.
• CE approval from ERTL.
• 4 digits of 7 segment, flicker free, bright LEDs 14.2mm height, in each row.
• DIP switch for CTRatio adjustment.
• PT Ratio Factory set.
• FiFinger proof self-aligning terminals for connection (optional)
• Auto Scroll facility
• Cutout: As per DIN 43700

Features

• True RMS computation.
• Measures active power phase wise and total.
• Power factor per phase and system P.F.
• Auto scalling into Kilo, Mega and Giga and deciman shift.
• CT ratio programmable at site.
• Aux Supply : 230V OR 110V
• Auto scrolling function for parameter view
• Star and delta conversion
• Very low CT burden.
• 2 line display of 4 crisp and super bright digits of 14.2 mm. height
• Cutout: As per DIN 43700

Features

• Suitable for 3 Phase & 1 Phase system
• True RMS readings
• C Ratio site adjustable
• Manual and Auto scrolling
• Correct monitoring of kWh even on current reversal
• Direct reading wihout MF
• Checks for phase reverasal
• Display of 3 rows 4 digits each 14.2mm red bright LEDs
• ERTL Tested
• External pulse for calibration
• Low CT/PT burden

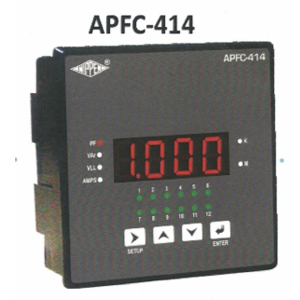

APFC - 414

NIPPEN Model APFCR-1CT is used for measurement and control of PF using Reactive power compensation. Capacitor banks are suitably switched ON and OFF automatically to provide necessary compensation. An intelligent switching algorithm (Wear leveling) ensures uniform aging of the capacitors used to achieve the target PF.

More Details

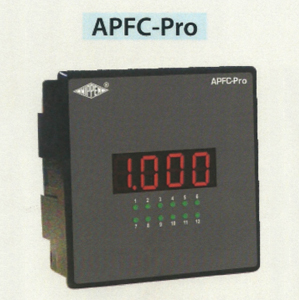

APFC - PRO

NIPPEN Model APFC-Pro is used for measurement and control of PF using Reactive power compensation. Capacitor banks are suitably switched ON and OFF automatically to provide necessary compensation. An intelligent switching algorithm (Wear leveling) ensures uniform aging of the capacitors used to achieve the target PF.

More Details

SPECIFICATION

• System: 3Phase 4wire /1 Phase system.
• System Voltage: 380 to 41 5 VAC II
• Under Voltage factory set.
• Burden on supply : < 3VA.
• Temperature: -20~C to +5S C
• Humidity :< 95% Rh condensing,
• Dimension: 89(L)x 17.S(B)x58{H)mm.
• Mounting : DIN 35mm Rail I 2x M4 screw.
• Weight :80gms.

FEATURES

• Trip level 75% of supply voltage.
• Time delay user set from 5 . 15 minutes.
• LED indication for "Power up" and "Relay on".
• Consistent reliability with accuracy.

OUTPUT RELAY

• 1 NC contact / 1 NO contact
• Rated voltage: 250 VAC
• Switching capacity: 1250 VA (5 A /250 VAG)
• Fusing: SA fast acting.

APPLICATION

• Control panel
• Feeder /motor
• Generator
• Transformer

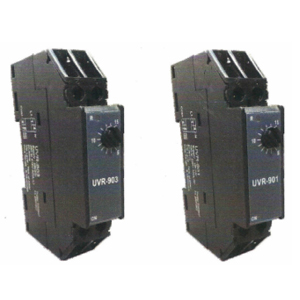

MODELS

• UVR-903

  L3 3 4 N | L3 3 4 N | 8 NC | COM 6 7 NO
• UVR-901

  4 N | L1 1 | COM 6 7 NO

NIPPEN Maximum Demand Controller offer demand monitoring with date and time of occurrence. The present and predictive demand are displayed separately. The Maximum Demand Controller (MDC) has 4 relays to facilitate tripping of non essential loads.

The trip setting is done according to the contract demand offered by the Electricity Board. Demand control is done by 1) Step Demand Control 2) Forecast Demand Control.
