Rotary Switches 100-600 Amperes

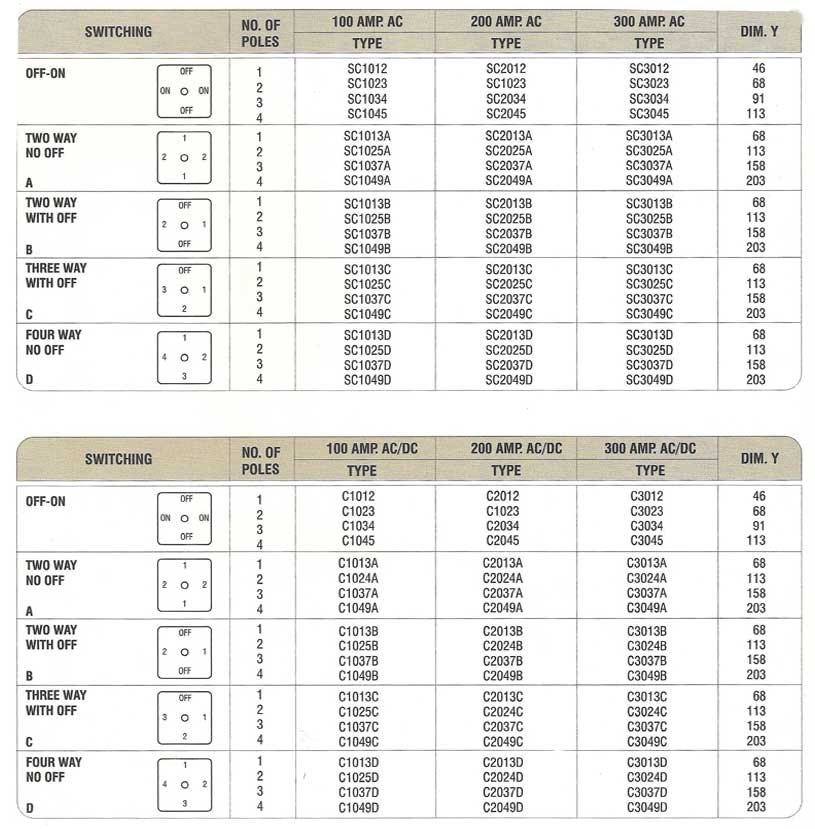

Rotary Swiches of 100-600 amperes, 4 Position, Listed overleaf, are with standard switching sequences up to 4 poles. Multi -pole switches are offered on request.

TYPE:

Open execution without any enclosure.

DESIGN:

Air-break wiping contact (Double Break) Silver Plated, Self Aligning.

RATING:

100,200,3000,400,500 and 600 amperes for for working voltage of 250 or 440 for AC or AC/DC switches.

SPECIFICATION

Rotary Switches conform to ISS : 13947 (Part 1and PArt 111)/1993 for short circuit conditions and also to BSS and DEfence Specifications.

MACHANISM :

Quick MAke Break for AC as well as DC switching.

MOUNTING:

Universal mounting for Base and panel. Specify SC for AC and C for DC.

OPERATING HANDLE :

Level typr metalica handle painted black, for switches up to 3 discs. Above 3 discs all switches are provided with capstan type handle. 100 amp light duty switches are supplier with black/ red knob.

OPTIONAL ACCESSSORIES

A selection of accessories and attachments from a wide variety is available, viz. Handles, Indicating plated, Centre Locks, Cubicle Door Interlocks, Lockable-Non-Lockable etc. availlable on request.

KAYCEE Rotary Cam Switches have been engineered and designed especially to meet the requirements of latest concepts in switching technology demanding miniaturization and sophistication in control engineering. These are guaranteed for optimum performance and meet the most arduous industrial applications. Kaycee Rotary Cam Switches are hand-operated, assembled on packet principle giving choice of multi-position and multi-pole circuits.

Switches for Motor Control application covers a wide range of applications such as switching, controlling and starting of 3 phase AC squirrel cage induction motors.

Kaycee Rotary Cam switches are manufactured in the following range :

10A/440V AC,50 Hz at 0.8 Power Factor or 6A/250V DC. (Thermal Rating)
12A/380V AC, 50 Hz at 0.8 Power Factor.
25A/250V AC or 10A/440V AC, 50 Hz at 0.8 Power Factor or 25A/250V DC. (Thermal Rating)

Motor Control Switches suitable for squirrel cage induction motors up to 7.5 H.P., 3 phase 415 V AC, 50 Hz. system.

Range : 6A to 200A, breaker control : 25 & 32 Amp
Angle Of throw : 30,45,60 & 90deg.
Mounting : flush & base.

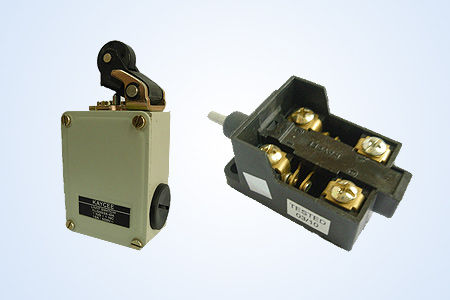

Custom base switches as per design available with stay put, spring return with lost motion sequence locking available.

Available with type K1, K3, K4, K5, K7, K8 with different actuators.
Approved inLCSO Defence & all OEMs .
Rating : 2 TO 15A, 250 V AC 220V DC.
Contacts : 1NO+1NC, 2NO+2NC.

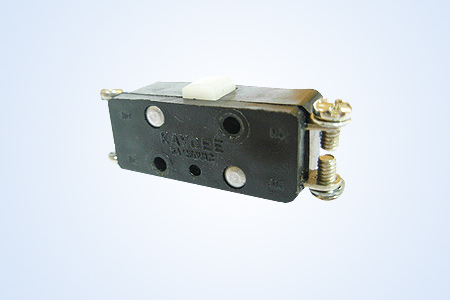

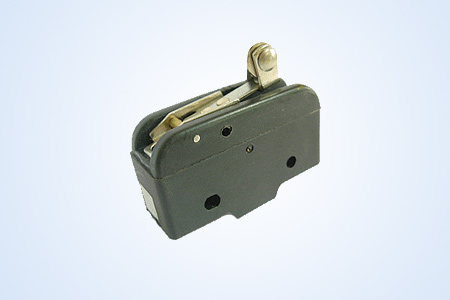

Standard Microswitches type K1 bear the safety and quality mark of Kaycee. Inspite of small casing dimensions, the creepage distance and clearance in air are so designed that maximum safety is ensured. Precision in design and manufacture as well as the high quality of the material used, results in long mechanical and electrical life. Switches are tested for compilance with the characteristic data to ensure quaity. The Switch with its actuating member and auxiliary devices has a wide application in industrial and electonic control.

Executions:
Kaycee Standard Microswitches are available in these different types of bases as shown below.The various types of Actuators are shown on the reverse page and the basic switch can be supplied with any of these Actuators to suit individual requirements. While ordering please specify the type of base and actuators required.

Specifications:

Conforms to JSS 51204 & ISS 6089

Circuitry :

Type K1 is available in single pole providing 1 No and 1 NC contact arrangement.

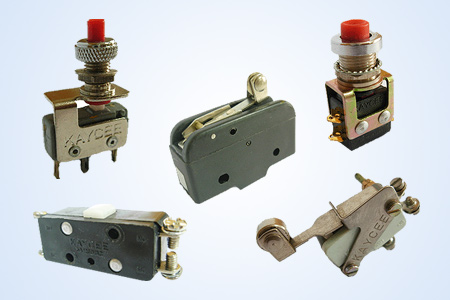

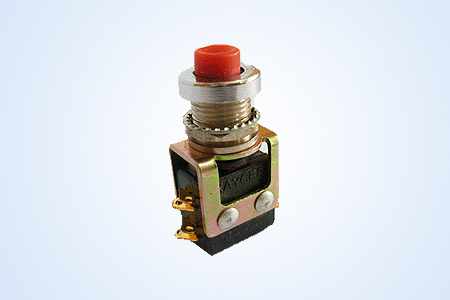

Kaycee Miniature Microswitches type K3 is an extremely versatile switch with "SNAP" action. Operated by light pressure or small movement or both. Its applications are wide used as control gear for industrial application Automation.
Miniature Microswitch with its actuators caters to every possible application where precision, rugged dependability and positive contact are required.

Execution:
Kaycee Miniature Microswitches are available in these different types of terminals as shown on the reverse page.
The various types of actuators are shown below. The basic switch can be supplied with any of these terminals, having operating force as shown in the Table along side and actuators to suit individual requirements. Please specify the type of terminal, operating force, current rating and actuator required.

Long life:

The switch case is made from high di-electric PHENOLIC material-operating plunger or NYLON contact blades of BERYLLIUM COPPER and contacts of SILVER alloy thus ensuring long Electrical and Mechanical life.

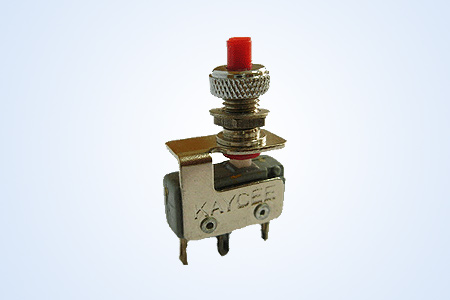

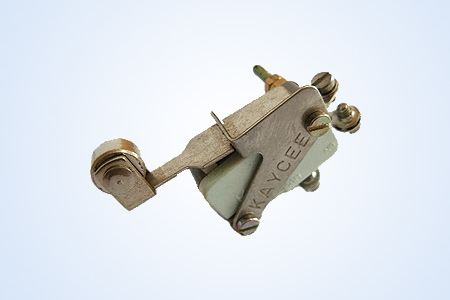

Kaycee Sub-Miniature Micro Switch type K4 / K7 has been designed for use where space is at premium. This incorporates precision snap action and has a long life mechanism. It is an ideal component for electronic and aerospace equipments or any application where size and weight arecritical factors. Switches conform to ISS 6089 and approved as per JSS 51204 BY LCSO.

Circuitry:
Single Pole-Changeover with 1 NO and 1 NC contact arrangement.

Executions:
Kaycee Sub-Miniature Micro Switches are available in two different types of terminals and actuators as shown in the catalogue.

Kaycee Sub-Miniature Microswitch type K5 incorporates butterfly snap-action mechanism. Designed for use where space is at a premium. Confirms to joint services specification 5104, 1972.

Double break moving contact arrangement enables the circuit to be broken in two places simultaneously; Thus arc energy and heat gets dissipated minimizing the possibility of contact weld. This feature effectively increases electrical life.

Circuitry:
Type K5 is available in double pole providing 2 sets of NO & NC Contact arrangement and the option to control upto 4isolated circuits. It may be wired externally to provide (two commons to form) a standard double pole double throw switch.

Kaycee Microswitch typw K6 is a double break changeover switch incorporating butterfly snap action mechanism.

The switch is available in two basic types with and without reset. The reset type of switch.

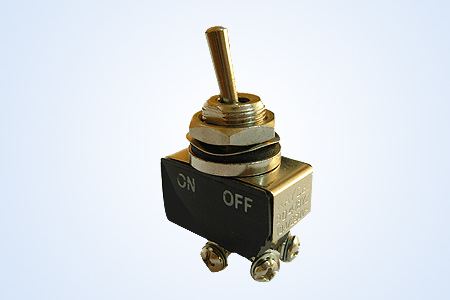

KAYCEES KT Series of precision Toggle Switches employ rocker-type contact mechanism. It is housed in an anti- tracking moulded case for dust free performance. Operating lever is sealed for protection against enviornmental conditions.

Specification

• Conforms to I.S.3452
• For Defence use to DEF 5151 & JSS 51201

Rocker type contact housed in anti tracking moulded case causes dust free operations.

Range:Single pole or double pole. Screw terminal or solder terminal.
Rating:10A-250VAC, 15A-28VDC for screw terminal & for solder.
Terminal:6A-250VAC, 15A-28VDC.
Digital Panel Meters:1 or 3 meters. Fully programmable at site as per CT/PT ratio.
Multifunction meters with different parameters, Load managers. CT/PT: We also have CT & PT.

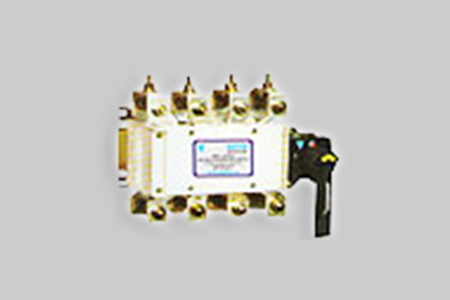

Kaycee range of co-series compact version On Load Changover switches are manually fromnt operated 4 poles switches with very compct design which helps to save the space in panel boards resulting in low costing of panel boards. These comprise of two On Load Switch Disconnectors, which are coupled together and are mechanically interlocked with common outgoing, these are used in low voltage distribution circuits and at places where continuity of suppy is necessory for switching from main supply to an alternate source of supply and vise versa.

All CO-SERIES Switches are capable of making, carrying & breaking currents under normal circuit conditions, which may include operating under overload cinditions and also carrying currents under specified abnormal circuit conditions, which may include operating under overload conditions adn also carrying currents under specified abnormal circuit conditins such as short circuit for a specified time.

Compact design with sizes.

• 0:40,63,80&100A
• 125,160,200A
• 250,320A
• 400,630A

Execution:
Open & Steel Sheet Enclousrre. Utilisation category: AC 23A. & suitable for Aux.contacts 2 NO & 2 NC for signalization & interlocking.

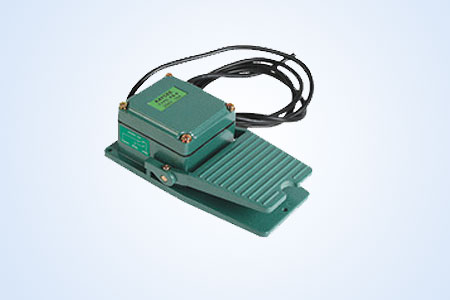

Kaycee the pioneers in switch manufacturing, offer a wide range of foot switches. kaycee foot switches are designed to open or close AC pilot circuits, enabling machine operating sequences tobe controlled by foot and thereby allowing materials or work pieces to be fed in by hand. All the models of foot switches are made of aluminium castings, and with 1 meter long cable.

Available in three sizes FS3,FS4&FS5

• Fs3 : 1A1B CONTACT 10A,250VAC
• Fs4 : 1A1BCONTACT 15A 250VAC
• Fs5 : QAQB CONTACT 15A,250VAC WITH FOOT GAURD

Converts Mechanical motion to electical motion .
Available with 1NO+1NC & 2NO+2NC

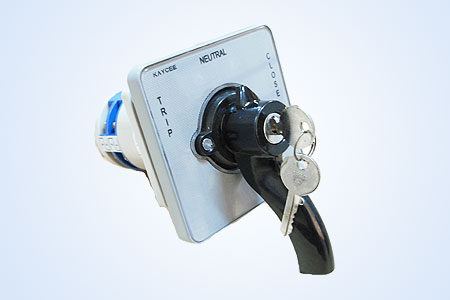

Breaker Control Switch is designed on packet type construction. Each packet consists of two electrically independent double break contacts actuated by a Cam. It is developed to cover the wide range of application such as control of Circuit Breaker, Small Motors and wherever severe frequent operations are required.

Types

Breaker Control Swicthes are availbale in following types or combination of these types ( Ref. Coding System) STAY PUT SWITCH
This type switch is supplied with 30o, 45o, 60oor 90o operating angle

SPRING RETURN SWITCH
This type switch is supplied for a preferred 45o or 60o

STAY PUT AND SPRING RETURN
This type switch can have four stay put positions having 45o angle with one spring return position having 45o operating angle. OR
This type switch can have three stay put positions having 60o angle with one spring return position having 60o operating angle.

SPRING RETURN AND LOST MOTION
This type of switch is divided in two parts. The front portion of the swtich containing contacts with spring return action and the rear portion accomodating with
lost motion device. This switch is supplied with 45o or 60o operating angle.

SEQUENCE LOCKING
n this type of swtich two consecutive movements in clockwise direction are prevented .It is available in 3 position spring return swtich

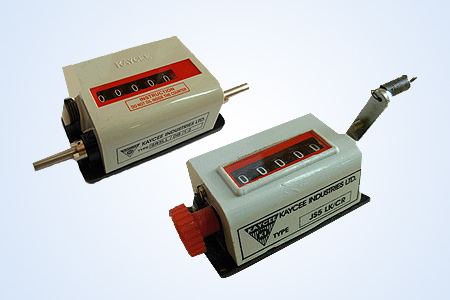

Abvailable i two types :

• Jn Stroke Counter & Sr Stroke Counter.
• Jn Strtoke Counter : Compact with five digit,upto 600 strokes per minute.

Sr Counter : 5,6& 7 digits, Available with lever & lock keyreset. Quick reset mechanism to bring back to zero.

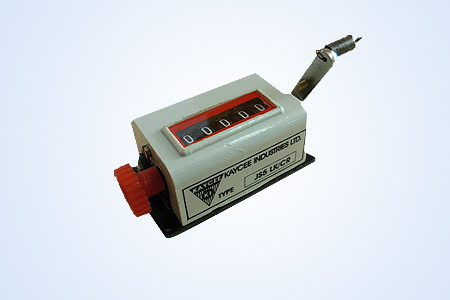

Kaycee Junior Stroke Counter is a small compact counter with five to asure accurate reading even in limited space. Available as Stroke model with knob type reset to bring all figures back to zero. It is having die castbase and cover for light wight. No maintainance is required since figure wheels and pinions are of special thermoplastivc material.

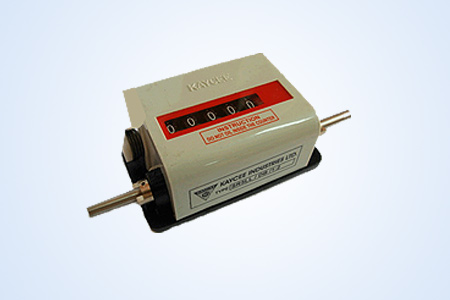

Kaycee senior Revolution / stroke Countes have die cast base and cover for light weight, expectational stregnth and rigidity. Plastic cover can also be supplied with use of self-lubricatong sintered bearings , stainless stel shafts, special thermo-plasric figure wheels and pinions, longer life, high speed and faster operations are achieved. Special quick reset brings all figure back to zero with one shot angular movement no maintainance required.

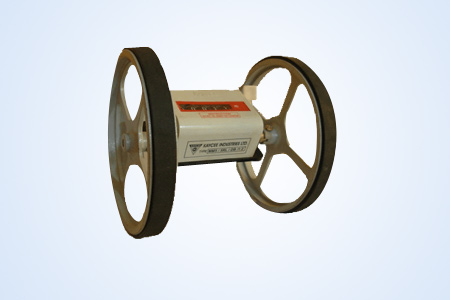

Used for accurate measurment of fabrics, paper and plastic directly in metric units. The Counter is an adaptation of the popular Senior Reset Counter Type SR as per specification as under. If used in conjunction with correct attachments little or no maintainance required.

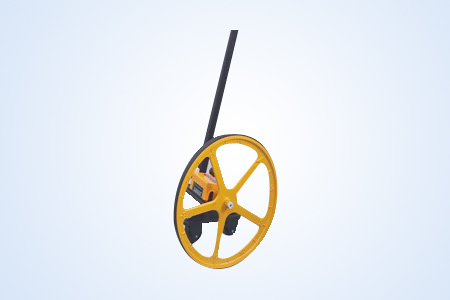

Kaycee road measuring machine Supercedes older design of chain and tape measurrement. It is a rapid convenient and accurate means of making measuring jobs simple and effortless.
Just walk along the path to be measured with the measuring instrument and their you have it all worked out the total distance wlaked by you. direct in meters and decimeters on an easy to rad, staright reading dial.

• Voltage : AC 110V, 220V DC 12V 24V
• Tolerance : Rated Voltage - 15 % -+10%
• Counting Speed : Ac 10COS DC 20 CPS
• Consumption AC 3VA DC3.5W
• Test : Ac1,500V/1min
• With Reset Key.

• Easy mounting as per Kaycee Mechanical counter.
• Light in Weight.

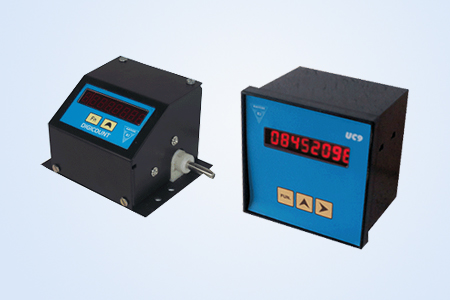

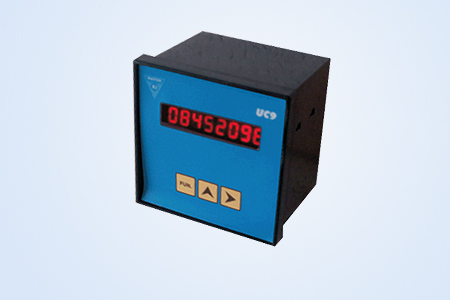

• No gear ratio required any wheel Dia can be programmed on site.
• Bright RED 8 Digit LED Display.
• Inbuilt sensor.
• High sensing speed.
• For predetermined counter Relay output.

• Light in weight
• Set point settable from Key Pad.
• High Speed sensing.
• For predetermined counter relay output.
• Last count Memory in case of power failure.

We can offer the customize solution as per requirement.

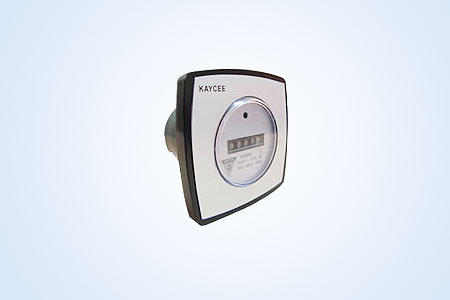

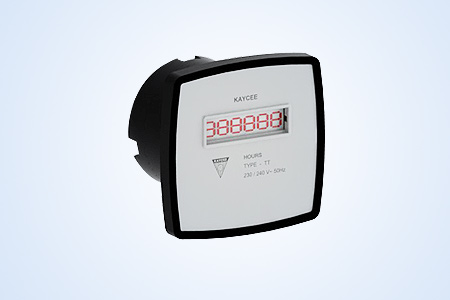

Kaycee Time Totalisers incorporate a self - starting syanchronus movment ensuring accurate summation of ON TIME of any circulated from an ac supply. Each time the machine is switched on, the totaliser records the running time of that machine directly on the staright reading dial to read either in hours or minitus down to tenths. All models of Time Totalisers are suitabl to flush panel mountung.

Application Industry:
Air compressors, circuit breakers, Generators, Radio & TV stations, AC, Textile machines, Boilers, Process industries, Laboratories ETC.

Features

• Tampered proof.
• Light in Weight.
• Bright Red LED Display.
• High Accuracy compare to mechanical.
• Easy mounting as per Kaycee Mechanical time totalizer.
• Reset / Non-reset facility.
• Available in AC & DC Voltage.

Designed for monitoring or operating all AC & DC powered machines and plants.

Operating hours are required for many reasons. To find out operating costs to check maintainance intervals or monitor guarantee peroids. The basic design can be adapted to any range of applications by usinng additional componants.

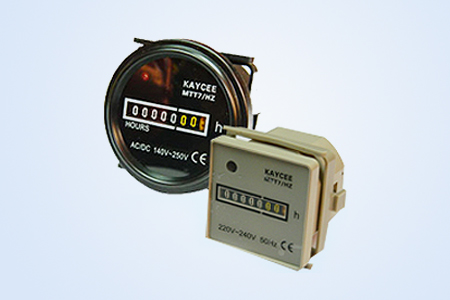

Kaycee Mini Time totalisers record hours and 1/10th of an hour without reset and are available in 7 digits-99999.99 Hrs. Mounting Two Varieties - Flush Panel Mounting.
