Universal Input Temperature Controller
UTC-1131
Single Display, ON-OFF & TP Action

Features

• Single 3 Digit Display
• Size (HxW):96x96,72x72,48x48mm
• Heat or Cool mode selectable
• Low cost
• Easy to use

Specification

• Universal Input (J, K, PT-100/3W)
• Output:1 Relay & SSR Both Parallel
• Control action:TP/ON-OFF Selectable
• Power Supply:100-250V AC/DC, 50Hz

Universal Input,Double Display, Temperature Controller
UTC-221
Double Display, TP & ON-OFF Control Action

Features

• Double Display 4+4 Digit
• Size (HxW): 96x96,72x72,48x48 mm
• Heat or Cool mode selectable

Specification

• Universal Input (J, K, PT-100/3W)
• Output:1 Relay & SSR Both Parallel
• Control action:TP/ON-OFF Selectable (Configurable)
• Power Supply:100-250V AC/DC, 50/60 Hz

Universal Input PID Temperature Controller
UTC-413P
Single Display, PID Control Action, Economy Range

Features

• Single 3 Digit Display
• Size (HXW): 96x96,72x72,48x48 mm
• Heat Or Cool mode selectable
• Low Cost
• Easy to use

Specification

• Universal Input ( J,K,PT-100/3W)
• Output : 1 Relay & SSR Both Parallal
• Control Action : PID/ON-OFF selectable (Configurable)
• Power Supply : 100-250V AC/DC,50Hz

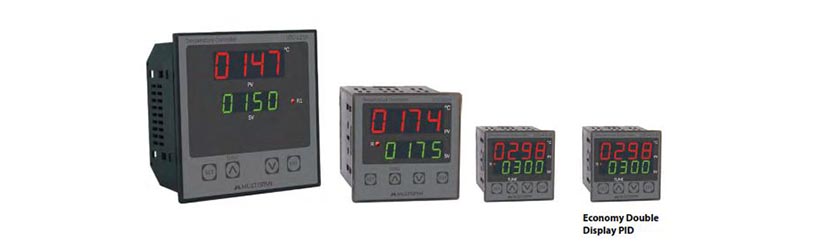

Universal Input,Dual Display,PID Temperature Controller
UTC-421P
Double Display,Single Output,PID Control Action

Features

• Double Display,4+4 Digit Display
• Size (HxW):96x96,72x72,48x48,96x48mm
• Heat or Cool mode selectable

Specification

• Universal Input ( J,K,PT-100/3W)
• Output: 1 Relay & SSR both parallel
• Control Action : PID/ON-OFF selectable (Configurable)
• Power Supply : 100-250V AC/DC,50/60 Hz

Universal Input,Dual Display,Dual Output,PID Controller, Basic Feature
UTC-422
Double Display,Dual Output,PID/ON-OFF Control Action

Features

• Double Display, 4+4 Digit
• Dual Output
• Size (HxW):96x96,72x72,48x48mm
• Output 1 For Heating
• Output 2 For Cooling

Specification

• Universal Input (J,K,PT-100/3W)
• Output 1 : Relay & SSR both parallel
• Output 2 : Relay
• Control Action : PID/ON-OFF selectable (Configurable)
• Power Supply : 100-250V AC/DC,50/60 Hz

MDC-1922
Single Display: 7 segment, 3 1/2-Digit, 0.56”, RED LED.

INPUT
J, K OR PT-100 2W / 3W (Factory Set)
J (0ºC TO 400ºC) or K (0ºC TO 1200ºC) or PT-100 2W / 3W
(0ºC TO 400ºC or 0ºC TO 199.9ºC or -50.0ºC to 199.9 ºC )

SPECIFICATION

• Setting - PUSH TO SET by Screw Driver (Potentiomatric)
• Set Point - 2 - Set Point
• Control Action - ON-OFF / TIME PROPORTIONAL (TP) (Factory Set)
• Operating Mode 1 - Relay 1- only Heat Mode
• Operating Mode 2 - Relay 2 - HEAT Mode & COOL Mode (Factory Set)
• Resolution - J & K 1°C Fix, PT-100 2W/3W 1°C/0.1°C
• Accuracy - ±1% of FSD
• Power Supply - 230V AC ±10%, 50 Hz
• Protection - Relay turns OFF in case of sensor break
• Indication - LED for Relay Status Indication & Sensor Break
• Enclosure Material - Metal
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% Non Condensing

PROGRAMMABLE TEMPERATURE CONTROLLER
UTC-121

Display
Upper : 7 segment, 4 digit, 0.56”, RED LED display - Process value
Lower : 7 segment, 4 digit, 0.4”, GREEN LED display - Set value

SPECIFICATION

• Set point - 1 - Set Point
• Control Action - Time Proportional (TP) / ON-OFF (Configurable)
• Operating Mode - HEAT / COOL Mode (Configurable)
• Resolution - J & K 1°C Fix, PT-100 2W/3W 1°C/0.1°C
• Accuracy - ±1% of FSD
• Power Supply - 90 - 270V AC/DC, 50/60 Hz, SMPS
• Protection - Relay turns OFF in case of sensor break
• Indication - “OPEN” message is display if sensor is disconnected & LED for Relay Status Indication
• Enclosure Material - Metal
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% Non Condensing

PROGRAMMABLE TEMPERATURE CONTROLLER
UTC-1202

Display
Upper : 7 segment, 4 digit, 0.56” RED LED display - Process value
Lower : 7 segment, 4 digit, 0.4” GREEN LED display - Set value

SPECIFICATION

• Set point - 2 - Set Point
• Control Action - PID with Auto Tunning / TP/ ON-OFF
• Resolution - J & K 1°C Fix, PT-100 2W / 3W 1°C/0.1°C
• Accuracy - ±1% of FSD
• Power Supply - 90-270V AC / DC, 50 / 60 Hz, SMPS
• Protection -Relay turns OFF in case of sensor break
• Indication - “OPEN” message is displayed if sensor is disconnected
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% Non Condensing

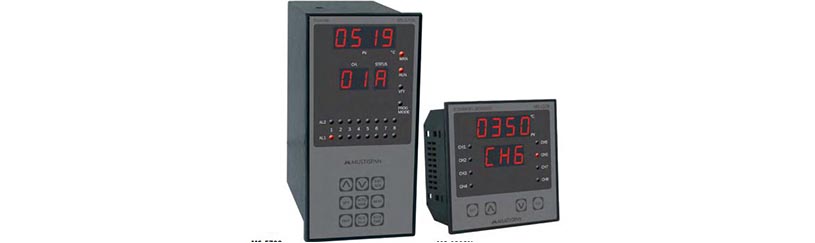

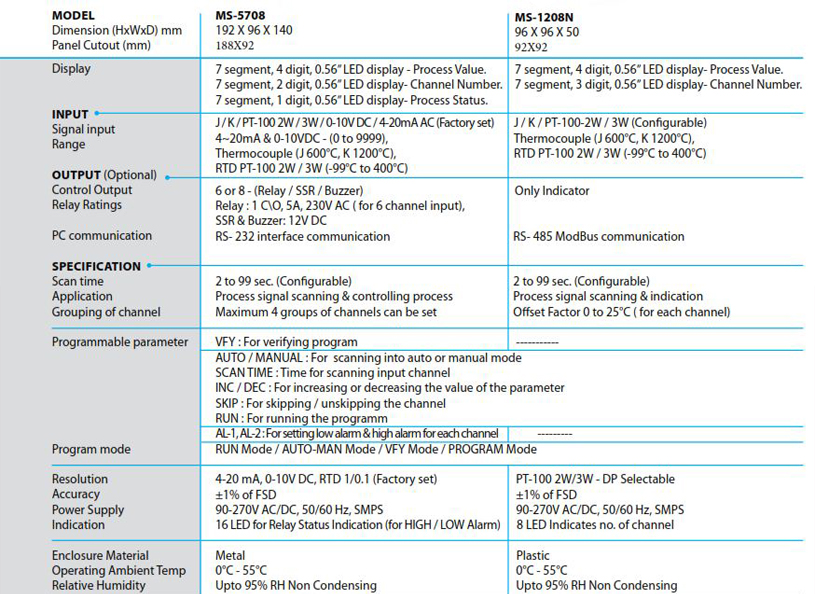

PROCESS CONTROL INSTRUMENT
MS-1208N

Display
7 segment, 4 digit, 0.56” LED display- Process Value.
7 segment, 3 digit, 0.56” LED display- Channel Number.

INPUT
J / K / PT-100-2W / 3W (Configurable)
Thermocouple (J 600°C, K 1200°C),
RTD PT-100 2W / 3W (-99°C to 400°C)

OUTPUT
Only Indicator

• Scan time - 2 to 99 sec. (Configurable)
• Application - Process signal scanning & indication
• Grouping of channel - Offset Factor 0 to 25°C ( for each channel)
• Resolution - PT-100 2W/3W - DP Selectable
• Accuracy - ±1% of FSD
• Power Supply - 90-270V AC/DC, 50/60 Hz, SMPS
• Indication - 8 LED Indicates no. of channel
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

Fault Annunciator
FA 11

Display 16 Character by 2 line with GREEN Light LCD display

INPUT 10 Input Potential Free Contact

OUTPUT
3-Relay
2 (NO-C) Contact for Audio and Visual Alarm, 1 C/O for Machine Trip

SPECIFICATION

• Upto 10 configurable Fault inputs
• Upto 3 relay outputs-Audio, Visible & Trip Alarms
• User configurable thru seperate PC software
• RS485 communication is available to program thru PC

PROCESS CONTROL INSTRUMENT
MI-63

Features Isolation Type Single Input - Single Output & Single Input - Dual Output Optical Type, 3 way (Input - Output, Output - Supply, Input - Supply) 1.2 kVA

INPUT 0-20mA / 4-20mA / 0-10V DC / -10 to 10V DC / 0 to 300V DC / 0 to 300V AC / Resistance 2W or 3W Port / Any range in mV DC J / K/ PT-100 2W / 3W

OUTPUT
0-20mA / 4-20mA / 0-10V DC ( Single or Dual Output) (Factory Set)

SPECIFICATION

• Accuracy - ±0.5% of FSD
• Power Supply - 90-270V AC / DC, 50/60Hz, SMPS
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

PROCESS CONTROL INSTRUMENT
PI -11B/11

Display
Single Display: 7 segment, 4 digit, 0.56” RED LED display.

SPECIFICATION

• Resolution - 1 / 0.1 (Configurable)
• Accuracy - ±1% of FSD
• Power Supply - 90-270V AC / DC, 50 / 60Hz, SMPS
• Indication - “OVER” - If Input Signal is more than Maximum Input
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% RH Non Condensing

PROCESS CONTROL INSTRUMENT
PIC-1101

Display
Single display : 7 segment, 4 digit, 0.56”, RED LED display.

SPECIFICATION

• Set point - 1 or 2 - Set point (Factory Set)
• Control Action - ON-OFF
• Resolution - 0.000 / 00.00 / 000.0 / 0000 (Configurable)
• Accuracy - ±1% of FSD
• Power Supply - 230 V AC, ±10 %, 50 Hz (Linear Power Supply)
• Indication - “OVER” - If Input Signal is more than Maximum Input
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% RH Non Condensing

PROCESS CONTROL INSTRUMENT
MS-1208N

Display
7 segment, 4 digit, 0.56” LED display- Process Value.
7 segment, 3 digit, 0.56” LED display- Channel Number.

SPECIFICATION

• Scan time - 2 to 99 sec. (Configurable)
• Application - Process signal scanning & indication
• Grouping of channel - Offset Factor 0 to 25°C ( for each channel)
• Resolution - PT-100 2W/3W - DP Selectable
• Accuracy - ±1% of FSD
• Power Supply - 90-270V AC/DC, 50/60 Hz, SMPS
• Indication - 8 LED Indicates no. of channel
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL PRESETABLE TIMER
MDT-1310

Display Single Display: 7 segment,
3 digit, 0.56”, RED LED display

OUTPUT 1 - Relay or SSR (Factory set)
2 C/O, 5A, 230V AC
12V DC approximately

SPECIFICATION

• Indication - LED for Relay Status Indication
• Start counting time - Starts on with power supply
• Operating Mode - Delayed ON / Instant ON (Factory set)
• Reset Facility - By Front Keypad
• Power Supply - 230 V AC, 50 Hz (Linear Power Supply)
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C to 55°C
• Relative Humidity - Upto 95% RH Non Condensing

MULTI-OUTPUT TIMER
MDT-1044

Display
Upper : 7 segment, 4 digit, 0.56” RED LED display
Lower : 7 segment, 4 digit, 0.4” GREEN LED display

INPUT
Micro switch / Limit swich / Proximity Switch (Factory Set)
Power ON / Enable / Trigger (Factory Set)

SPECIFICATION

• Set point - Delayed ON / Delayed OFF - 1 Set Point
• Operating Mode - Delayed ON / Delayed OFF / Cycle Mode (Factory Set)
• Counting direction - Up or Down (Factory Set)
• Time Setting Range - 0 - 9999 & DP (Factory Set) sec / min / hour (Factory Set)
• Reset Facility - Front & Back Reset Both Available
• Power Supply - 90-270 V AC/DC, 50/60 Hz, SMPS
• Indication - LED for Relay Status Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

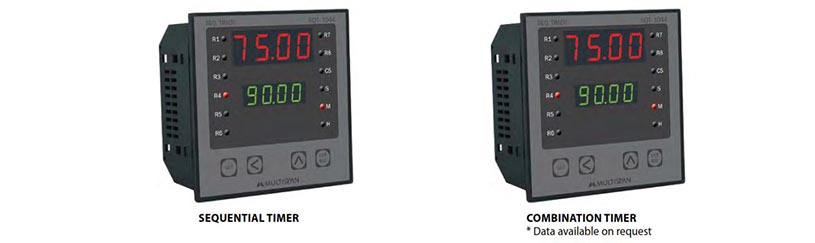

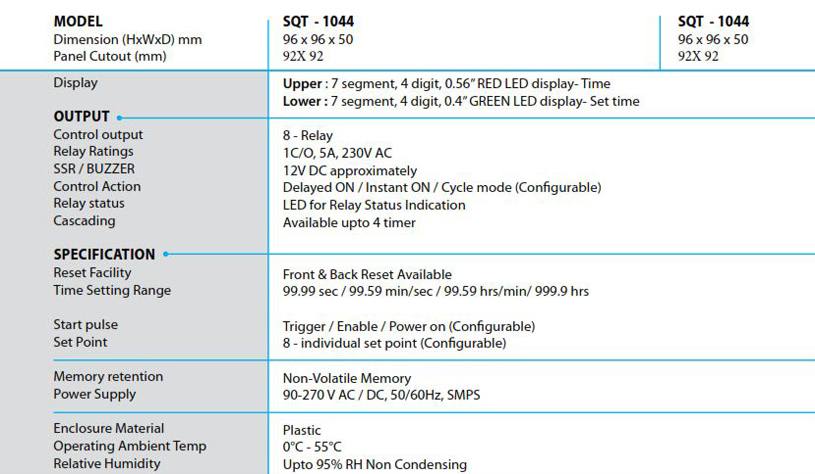

8 to 12 Channel Sequential Timer
SQT-1044

Display Upper : 7 segment, 4 digit, 0.56” RED LED display- Time
Lower : 7 segment, 4 digit, 0.4” GREEN LED display- Set time

SPECIFICATION

• Reset Facility - Front & Back Reset Available
• Time Setting Range - 99.99 sec / 99.59 min/sec / 99.59 hrs/min/ 999.9 hrs
• Start pulse - Trigger / Enable / Power on (Configurable)
• Set Point - 8 - individual set point (Configurable)
• Memory retention - Non-Volatile Memory
• Power Supply - 90-270 V AC / DC, 50/60Hz, SMPS
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

Digital Time Totalizer
DTT-1000

Display
Single Display: 7 segment, 6 digit, 0.56”, RED LED display

INPUT
Micro switch / Limit switch / Proximity Switch / 230V AC(Factory Set)

SPECIFICATION

• Reset Facility - By Front Keypad
• Memory Retention - Non-Volatile Memory
• Power Supply - 230V AC ±10%, 50 Hz (Linear Power Supply)
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL PRESETABLE TIMER
MDT-2300

Single Display: 7 segment, 2 or 3 digit, 0.56”, RED LED display
“2D=9.9/99 Sec/Min. (Factory Set), 3D = 99.9/999 Sec/Min (Factory Set)”

OUTPUT
2C/O, 5A, 230V AC
12V DC approximately

SPECIFICATIONS

• Time Setting - By Thumb Wheel Switch
• Counting Direction - Up / Down (Factory set)
• Set Point - Single Set Point
• Operating Mode - Delayed On/ Instant ON (Factory set)
• Power Supply - 230V AC ±10%, 50 Hz
• Indication - LED for Relay Status Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C to 55°C
• Relative Humidity- Upto 95% RH Non Condensing

PROGRAMMABLE TIMER
UTR-1044

Display: Upper : 7 segment, 4 digit, 0.56” RED LED - Time
Lower : 7 segment, 4 digit, 0.4” GREEN LED - Set Time

INPUT
Micro switch / Limit switch / Proximity

SPECIFICATIONS

• Set point - 1 - Set Point - (Delayed ON / Instant ON)(Configurable)
• Operating Mode - Delayed ON / Instant ON / Cycle Mode(Configurable)
• Reset Facility - Front & Back Both Reset Available
• Time Setting Range - 99.99 / 999.9 / 9999 sec (Configurable)
• Counting direction - Up / Down (Configurable)
• Memory retention - Yes / No (Configurable)
• Parameter lock - ON / OFF (Configurable)
• Power Supply - 90-270V AC/DC, 50/60 Hz, SMPS
• Indication - LED for Relay Status Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

PROGRAMMABLE LAUNDRY TIMER
FRT-1044

Display: Upper : 7 segment, 4 digit, 0.56” RED LED - Time
Lower : 7 segment, 4 digit, 0.4” GREEN LED - Set Time

OUTPUT
2 - Relay

SPECIFICATIONS

• Set point - 4 - set point, FORWARD / STOP / REVERSE / TOTAL time
• Start Command - Start & Stop Facility in Front Keypad
• Time Setting Range - 99.99 / 999.9 / 9999 (sec / min) (configurable)
• Counting direction - Up / Down (Configurable)
• Power Supply - 90-270V AC/DC, 50/60 Hz, SMPS
• Indication - LED for Relay Status Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL COUNT TOTALISER
CT-1000

Display
Single : 7 segment, 6 digit, 0.56”, RED LED display

INPUT
NPN/PNP proximity switch / Micro switch / 230V AC Pulse / Encoder

SPECIFICATION

• Reset Facility - Manual reset at Front Key
• Memory Retention - Non-Volatile Memory
• Power Supply - 230V AC ±10%, 50 Hz (Linear Power Supply)
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL PROGRAMMABLE COUNTER
PC-1044

Display
Upper : 7 segment, 4 digit, 0.56”, RED LED display - Process Value
Lower : 7 segment, 4 digit, 0.4”, GREEN LED display- Set value

INPUT
NPN/PNP proximity switch / Micro switch /(Configurable) / 230V AC Pulse / Encoder (Factory set)

SPECIFICATION

• Auto time - 0 - 99.9 sec (Configurable)
• Count direction - UP / DOWN (Factory Set)
• Memory Retention - Non-Volatile Memory
• Set point - 1 - Set point
• Reset Facility - Auto / Manual reset facility / reset at back facility
• Power supply - 230V AC ±10%, 50 Hz
• Indication - LED for Relay Status Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL PRESETABLE COUNTER
TWS-1400M

Display
Single display: 7 segment, 4 digit, 0.56”, RED LED
2 / 3 / 4 / 5 / 6 digit (Factory Set)

INPUT
NPN/PNP proximity switch / Micro switch (Configurable) / 230V AC Pulse / Encoder (Factory set)

SPECIFICATION

• Set points - Single Set Point
• Setting Method - Thumbwheel Switch
• Count direction - UP / DOWN Counting (Factory Set)
• Memory Retention - Non-Volatile Memory
• Reset Facility - Auto / Manual reset facility / reset at back facility
• Power supply - 90-270V AC/DC, 50/60 Hz, SMPS
• Indication - LED for Relay Status Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL LENGTH COUNTER
LC-1046

Display
Upper: 7 segment, 6 digit, 0.56”, RED LED display - Meters

INPUT
NPN/PNP Proximity Switch (Configurable) / Encoder (Factory Set)

SPECIFICATION

• Set points - Single Set Point
• Diameter Range - 0 - 9999.99 mm
• Setting - Front keypad programming
• Auto Time - 99.9 sec
• Memory Retention - Memory retention for power failure
• Length measurement - Facility to feed diameter length, 0-9999.99 mm diameter range
• Reset Facility - Auto / Manual Reset facility & Front & Back Reset Available
• Power supply - 230 V AC ±10%, 50 Hz (linear power supply)
• Indication - LED for Relay Status Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL BATCH COUNTER
BC-1046

Display
Upper : 7 segment, 6 digit, 0.56”,
RED LED display- Total Count
Lower : 7 segment, 4 digit, 0.4”,
GREEN LED display- Batch Count

Range Upper display range (0~999999 COUNT)
Lower Display range (0~9999)

INPUT NPN / PNP Proximity Switch / Micro switch (Configurable) /
230V AC Pulse (Factory Set)

OUTPUT 1 - (Relay + Buzzer / SSR + Buzzer)
1 C/O, 5A, 230V AC
12V DC approximately

• Set point - Set 1 & Set 2 (Configurable)
• Setting - Front keypad for programming
• Auto Time - 99.9 sec (Configurable)
• Reset Facility - Auto / Manual Reset facility & Front and Back Reset available
• Memory Retention - Non-Volatile Memory
• Power Supply - 230 V AC ±10%, 50 Hz (linear power supply)
• Indication - LED for Relay Status Indicaton
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

DIGITAL RPM INDICATOR
BC-1046

Display
Single : 7 segment 4 digit, 0.56” RED LED display

Range 4 - 5000 RPM

INPUT NPN / PNP Proximity switch (Configurable)

• Power Supply - 230V AC ±10%, 50 Hz
• Enclosure Material - Plastic
• Operating Ambient Temp - 0°C - 55°C
• Relative Humidity - Upto 95% RH Non Condensing

3 PHASE PANEL METER
AVF-19N

FEATURES

• Three display : 7 segment, 3 digits, 0.56”, RED LED display
• “True RMS
• Bright seven segment LED display for better readability.
• CT Ratio Programmble (up to 6000/5A)
• Auto decimal shifting for Current (resolution 0.01A or 1.0A)
• Auto scrolling or manual mode selectable
• Kamp indication”

SPECIFICATIONS

• CT selection Primary - 5 ~ 6000A
• CT selection Secondary Function - 5A
• Accuracy - Class 1.0
• Power supply - 230 V AC ±10%, 50 Hz
• Indication - LED for Ampere & Voltage Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% RH Non Condensing

3 PHASE ENERGY & POWER METER
EPM-13N

Display
Upper: 7 Segment, 4 digt, 0.56” RED LED display - kW
Lower: 7 Segment, 6 digit, 0.36” RED LED display - kWh

SPECIFICATIONS

• Reset Facility - By Front Keypad
• Measuring range - 0.000 - 9999 kW (active power)
• Accuracy - Class 1.0
• Power supply - 230 V AC ±10%, 50 Hz
• Indication - LED for Ampere & Voltage Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% RH Non Condensing

MULTIFUNCTION METER & POWER ANALYSER
TPA-13L

Display
Three Display: 7 Segment, 4 digit, 0.56” RED LED display

SPECIFICATIONS

• Reset Facility - Reset key for kWh (Active Energy)
• Special Feature - AUTO / MANUAL scrolling mode Auto decimal shifting for current (resolution 0.01A or 0.1A)
• Accuracy - Class 1.0
• Power supply - 230 V AC ±10%, 50 Hz
• Indication - LED for Ampere & Voltage Indication
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% RH Non Condensing

Motor Protection Device
MPD 19N
3 Phase & Single phase preventor

FEATURES

• Over & Under voltage (3 phase L-N and L-L setting)
• Over & Under Current (3 phase current setting)
• Single phase prevention facility built-in
• Single 5A relay for Load tripping

SPECIFICATION

• CT selection Primary - 0~200 A
• CT selection Secondary Function - 5A
• Accuracy - Class 1.0
• Power supply - 230 V AC ±10%, 50 Hz / 415 V AC
• Enclosure Material - Plastic
• Operating Ambient Temp - 0ºC - 55ºC
• Relative Humidity - Upto 95% RH Non Condensing
